E-BIKE

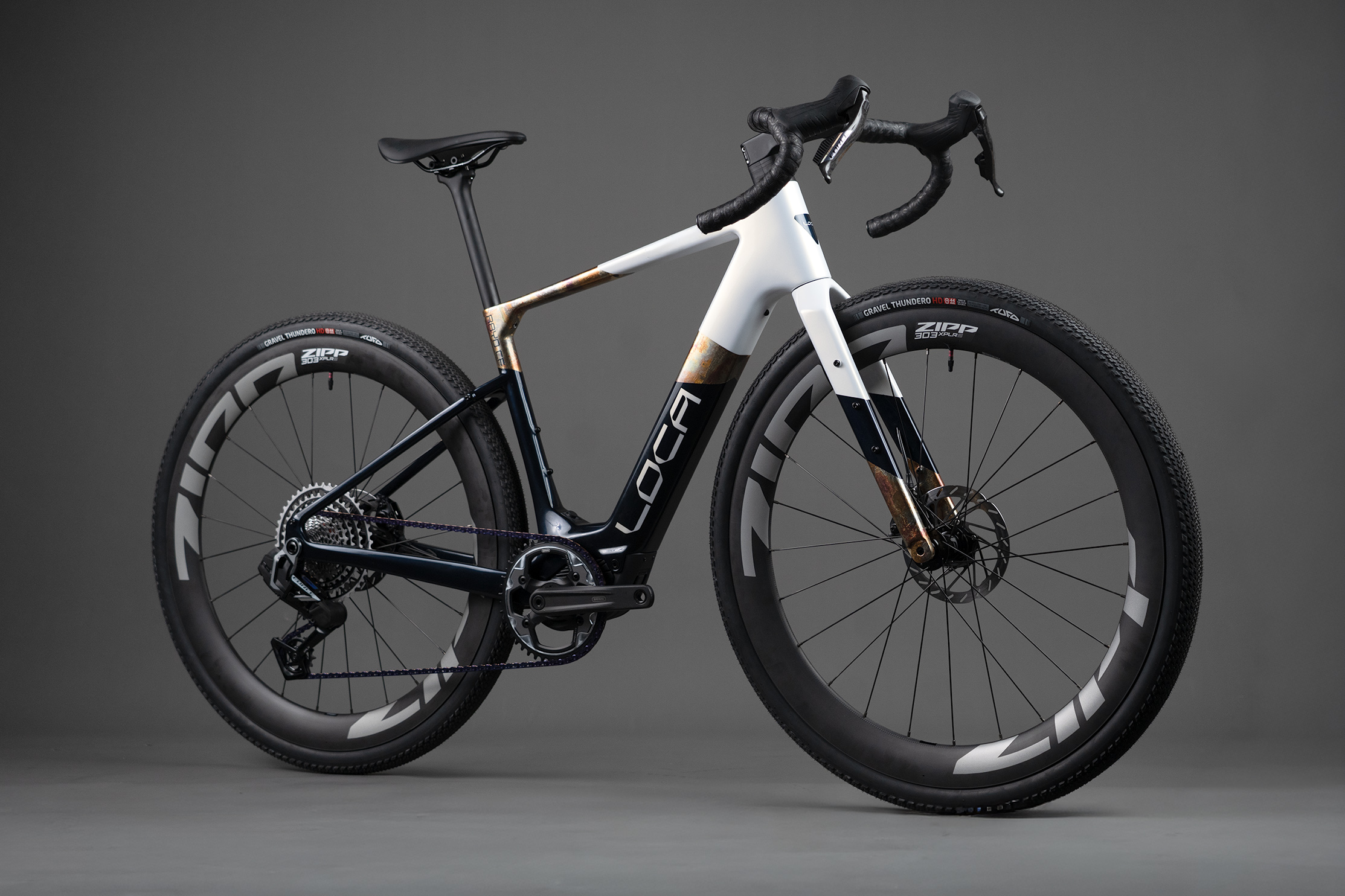

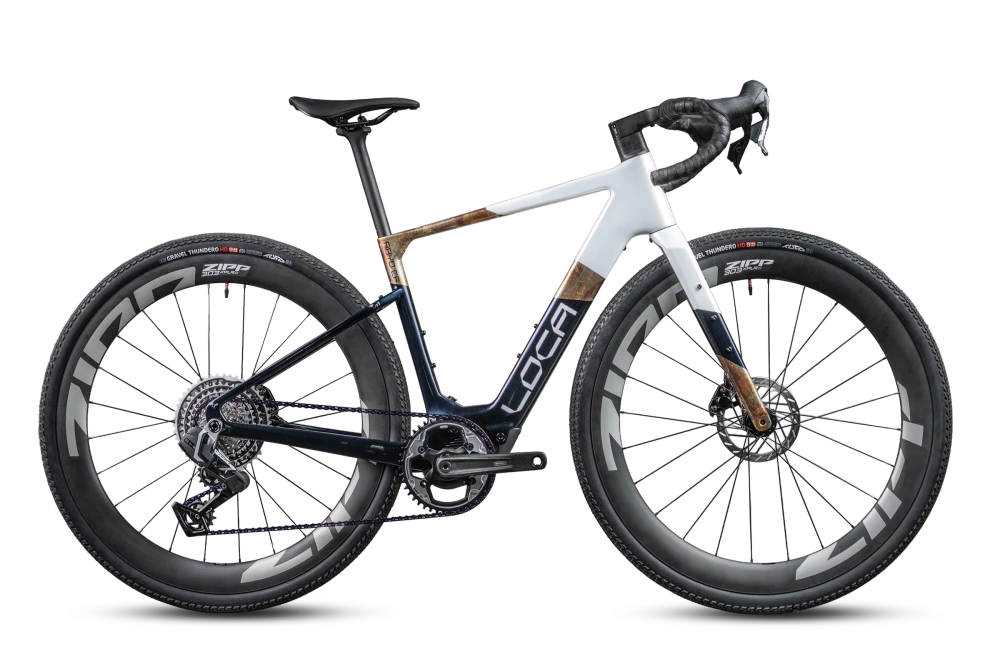

Rayo CF
Light e-gravel with a powerful motor
Toray Carbon
Frame and fork material
SRAM Force E1 AXS
Wireless drivetrain
From 13.8 kg
Bike weight
700x50c
Maximum tyre width
product unavailable

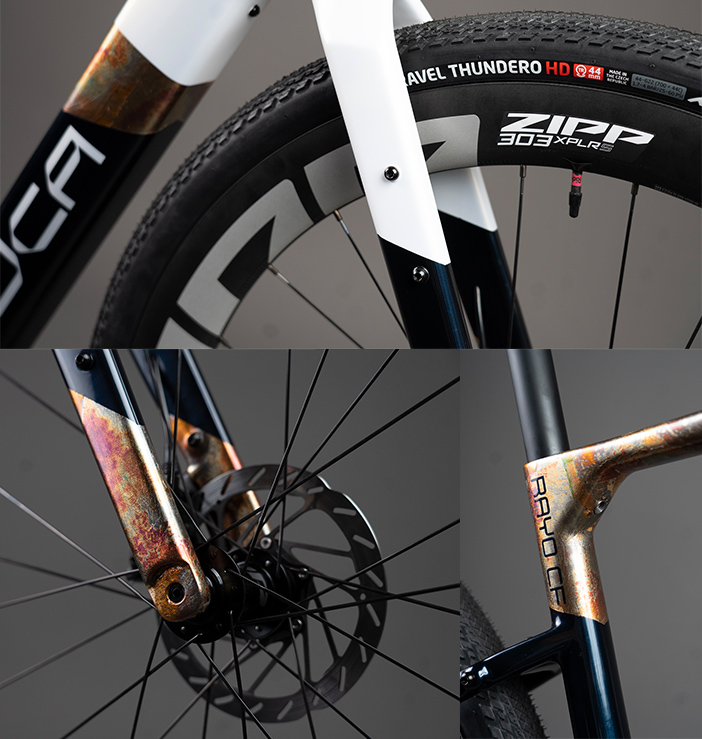

The devil's in the details
Our paint jobs
Midnight Sky
Design: LOCA | Tadek Ciechanowski
Paintwork: Dreamworkers
Design
We felt this bike category demanded it, and the e-bike's design had to be just as futuristic as the concept itself. Designed by Wroclaw artist Tadek Ciechanowski, Midnight Sky nods to cyberpunk neon and sci-fi aesthetics.
Execution

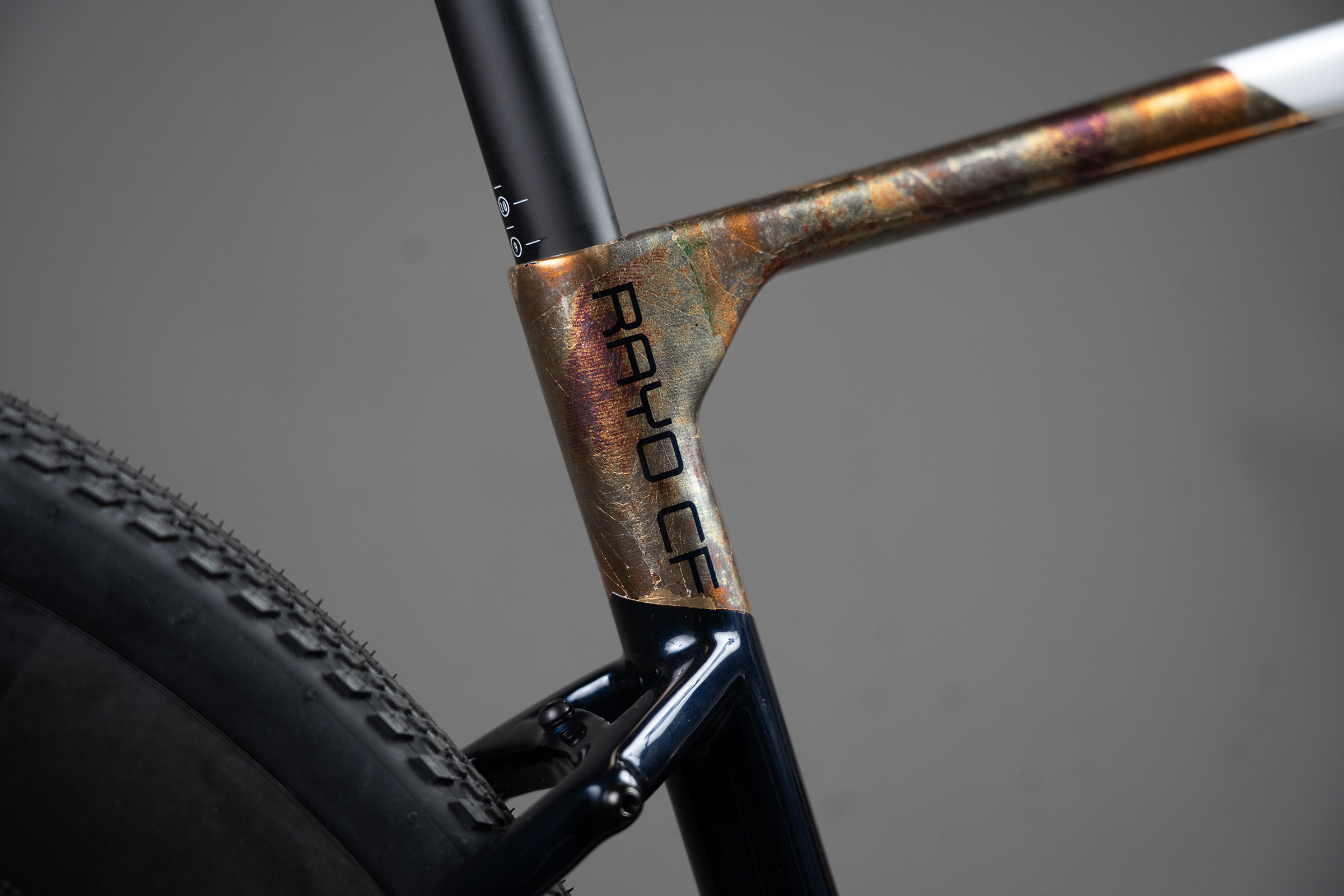

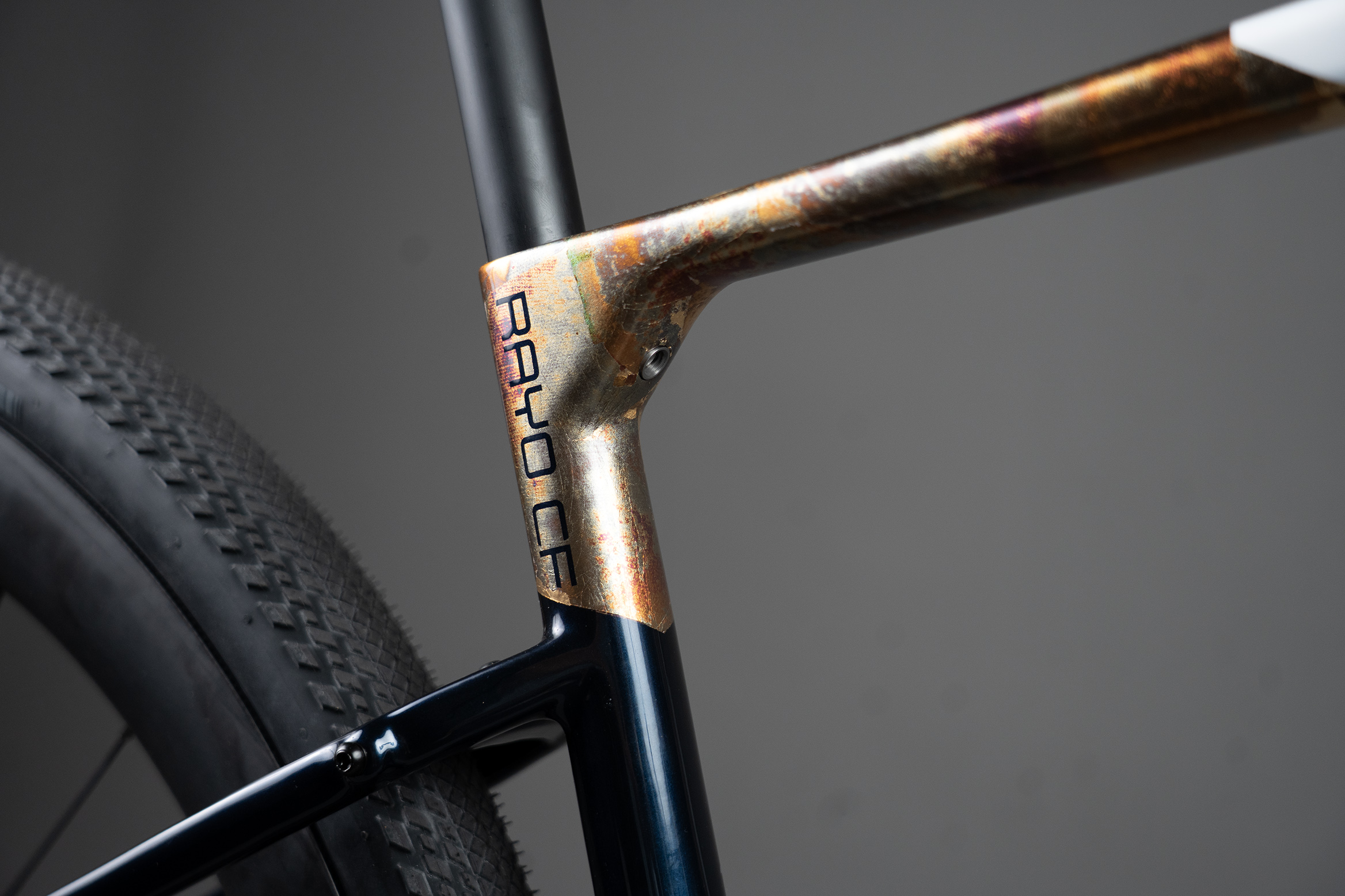

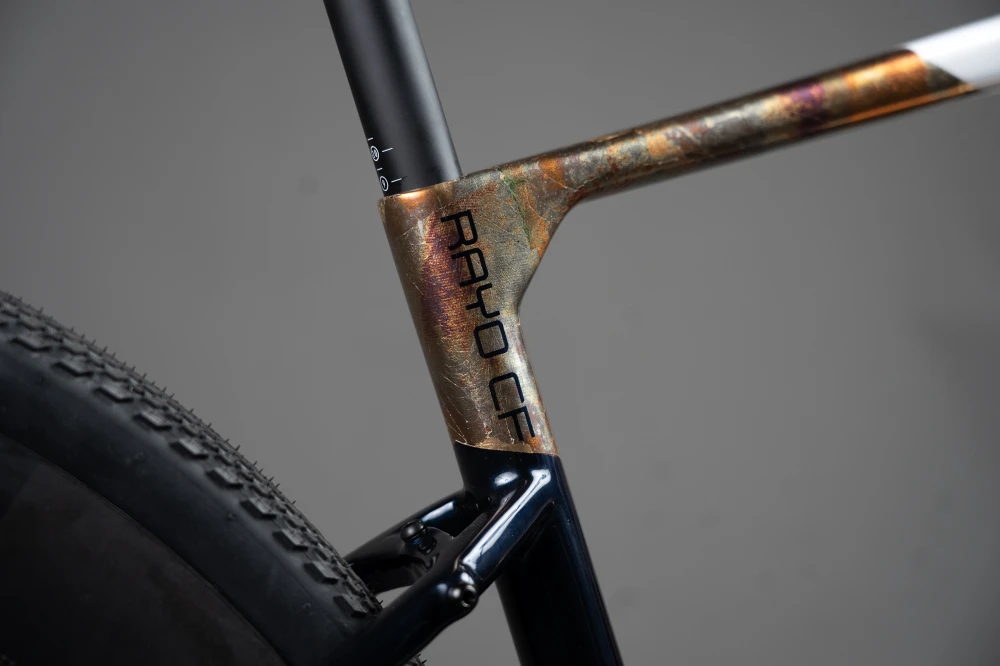

Like all our projects, the frame was painted using the "wet paint" technique. Each successive layer is applied by hand and dries directly on the frame's surface, hence the name. This process lets the paint shop achieve virtually any pattern or colour transition, including the gradients in Midnight Sky.
LOCA.CSTM
Bring your vision
to life
Do you have your own bike design idea?
We'll help you make it a reality!
Create a bike
with us!
LOCA.CSTM is a close collaboration with our team. Whether your idea for a new project is fully fleshed out or you're just starting your journey – you decide the final design and configuration!
Ride farther
See more
Specification
Frameset
Frame
Carbon, Toray fibres (from 1250 g), 12x142x1.0 axle (172 mm)
Paintwork
Hand-painted in Poland using wet paint technology for complex visual effects
Fork

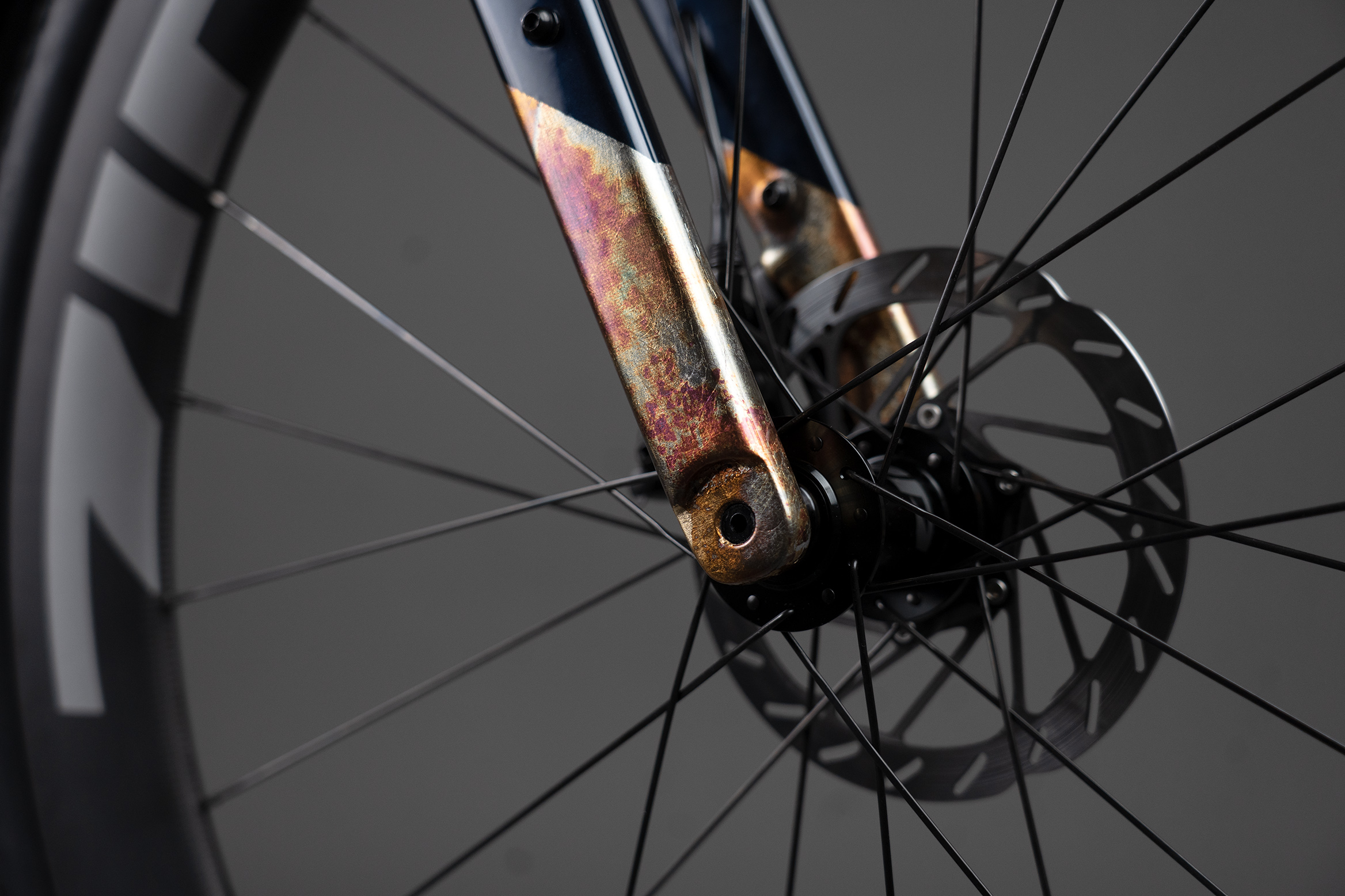

Carbon, tapered (from 450 g), 12x100x1.5 axle (121 mm)
Sizes
XS (44 cm) | S (47 cm) | M (50 cm) | L (53 cm) | XL (56 cm)
Drivetrain
Motor
Bafang M820, 80Nm, 250W
Battery
Bafang, 360Wh
Rear Derailleur
SRAM Force AXS E1 XPLR Carbon 1x13 (Full Mount)
Cassette
SRAM XG-1371, 10–46T, 1x13
Crankset
Bafang CK ISIS01.170P, 170 mm
Chain
SRAM Force AXS E1 Flattop (purple)
Brakes
Shifters
SRAM Force AXS E1 Carbon
Calipers
SRAM Force AXS E1
Rotors
SRAM HS2 160 mm
Cockpit
Handlebar
Integrated carbon cockpit; 80x400 mm (S) | 90x420 mm (M, L) | 100x440 mm (XL)
Bar tape
ZIPP Service Course CX
Wheels
Wheels
ZIPP 303 XPLR S Carbon | Mavic Allroad 700
Tyres
Tufo Thundero HD 700x48C, reinforced casing to help prevent cuts, one of the fastest gravel tyres on the market
Extras
Seatpost
Carbon, 27.2 mm; offset 0 mm
Saddle
Selle Italia Novus Boost (245x145mm)
Pedals
Not included
Hanger
UDH / Full Mount compatible
Weight
from 13.8 kg
Max. load
130 kg (ZIPP 303 XPLR S Carbon) | 120 kg (Mavic Allroad 700)
Geometry
Our electric gravel bike is built to surprise you with its comfort on long rides across varied terrain. The comfortable stack/reach ratio allows you to cover long distances without excessive fatigue. Chainstays that are short for an e-bike and a steep head tube
angle ensure precise handling and a high level of control in challenging terrain. The motor sits low, with a BB drop of as much as 75 mm. This lowers the centre of gravity and clearly improves the bike's stability, especially in corners.
| Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| A Seat tube c-t (mm) | 440 | 470 | 500 | 530 | 560 |
| B Effective TT (mm) | 515 | 530 | 548 | 565 | 580 |
| C Head tube (mm) | 143 | 148 | 167 | 186 | 195 |
| D Chainstay (mm) | 435 | 435 | 435 | 435 | 435 |
| E HT angle (°) | 70.5 | 70.5 | 71.0 | 71.5 | 72.0 |
| F ST angle (°) | 74.0 | 74.0 | 73.5 | 73.0 | 72.5 |
| G Wheelbase (mm) | 1011 | 1026 | 1039 | 1048 | 1049 |
| H BB drop (mm) | 75 | 75 | 75 | 75 | 75 |
| I Reach (mm) | 357 | 370 | 380 | 388 | 390 |
| J Stack (mm) | 565 | 570 | 590 | 610 | 620 |
Our frames are tested
in EFBE lab, in Germany
We build every bike according to a single principle: it must be good enough that we'd want to ride it ourselves. The frames undergo rigorous strength tests in accordance with the European ISO standard, and are additionally tested at the leading EFBE laboratory
in Germany. This is complemented by a multi-stage quality control process: upon receipt of the frames, after painting, and after assembly. Thanks to this, we are confident that the Rayo will withstand years of intensive riding on the most demanding routes.
Carbon
Lightweight, stiff, and durable – our carbon delivers excellent vibration damping, razor-sharp handling, and all-day comfort, even on demanding terrain.
SRAM Force E1 AXS
Wireless levers mean a clean cockpit and precise shifting. Tight gear steps and a wide range give you an advantage on climbs and fast sections alike. HS2 rotors dissipate heat better and boost braking power by up to 7% – brake with confidence even in extreme conditions. The carbon crank and derailleur cage bring greater stiffness and lower weight, while the extra buttons on the levers let you control your navigation more easily while riding.
From 13.8 kg
The ultra-light construction makes climbs easier to conquer, even the ones that once felt out of reach. And when you need to carry the bike, it will not be a problem.
700x50c
Clearance in line with modern standards opens up huge tyre options
– letting you run the best gravel tyres on the market.
Key features
Strong motor
High-capacity battery
The Bafang M820 didn't end up here by chance. This central motor offers high power while maintaining compact dimensions. With a torque of 80 Nm, it allows you to tackle even steep, mountainous climbs efficiently. The integrated 360 Wh battery in the down tube, despite its small size and weight, enables rides exceeding 70 km.
Zero cables.
Zero compromise.

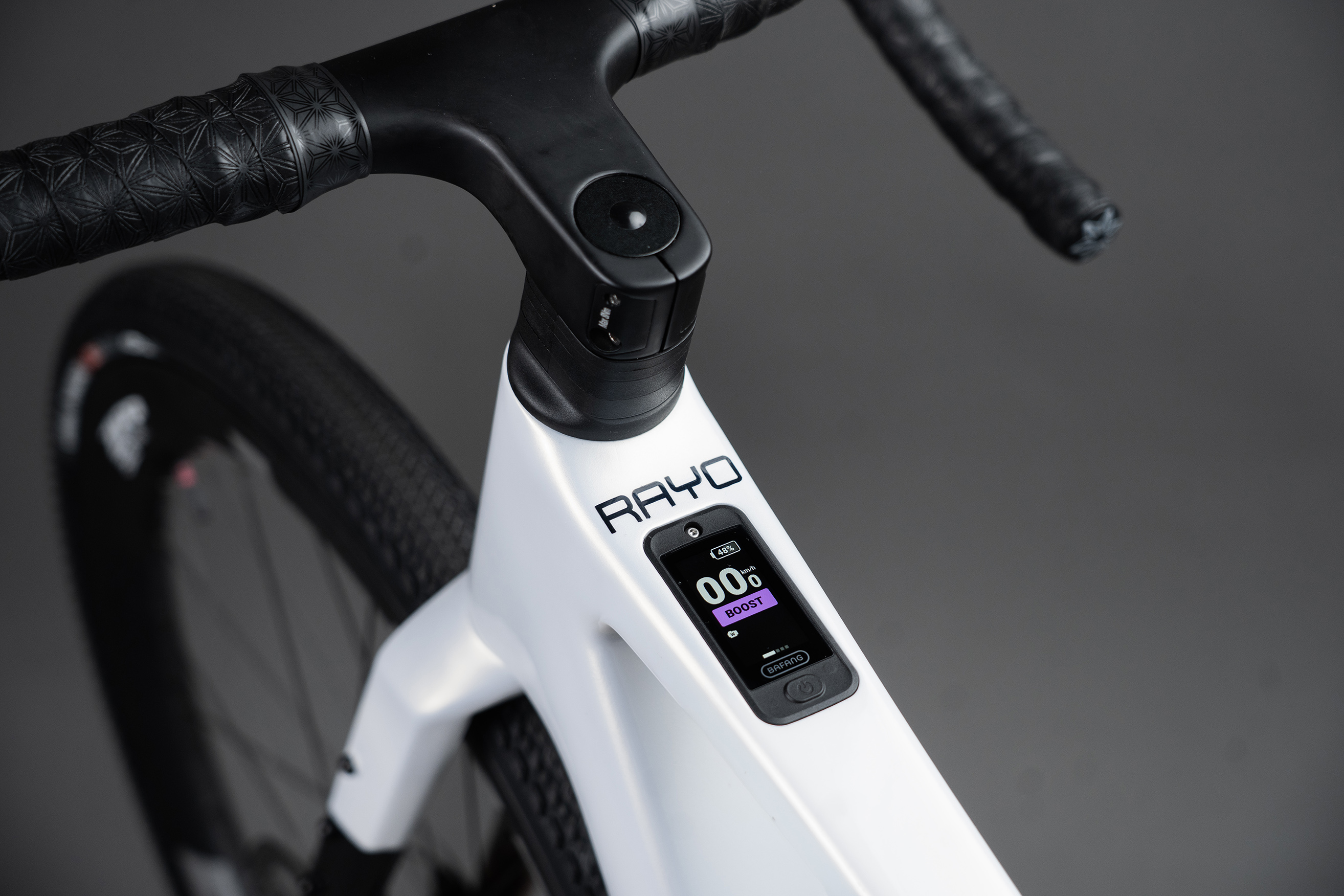

Thanks to FSA ACR technology and wireless drivetrains, all cables are fully hidden inside the cockpit and frame. The frame-integrated display and the motor control buttons under the handlebar keep operation intuitive without compromising the bike's aesthetics or its compatibility with bikepacking bags.
Ride fast. Ride comfortably.
Carefully selected components deliver reliability and comfort on every kilometre.
Drivetrain built
for any condition
We use advanced wireless SRAM AXS groupsets in most of our gravel builds. Why? Set it once and forget it. Flawless shifting no matter the conditions, massive gear range, long battery life, low weight, great stiffness and a clean look. What more could you ask for?
Wheels that carry you

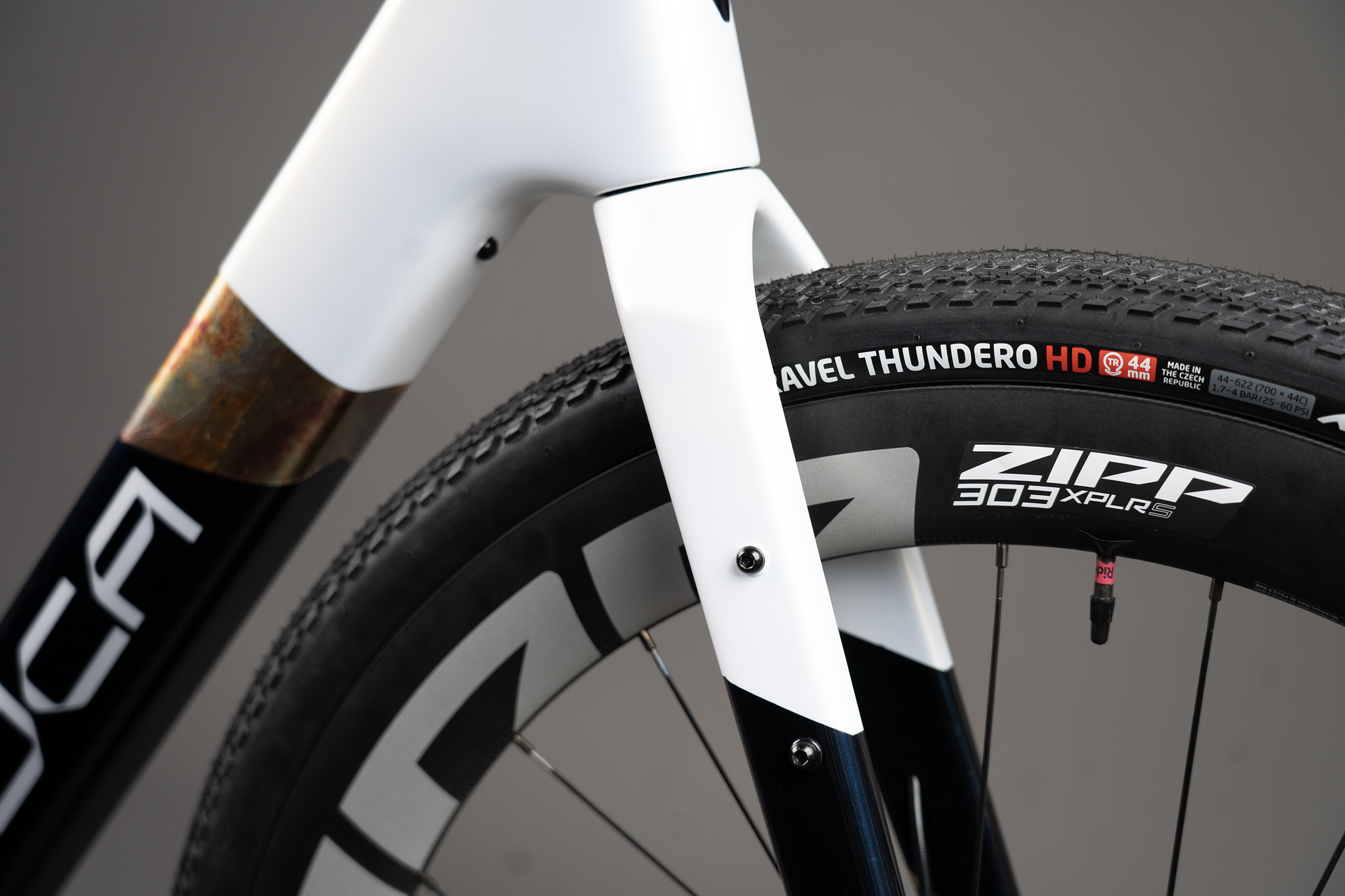

From the legendary ZIPP 303 XPLR S carbon wheels, through boutique Dandy Horse builds, to bombproof Mavics – we rely only on proven solutions that we have been riding ourselves for years. Tyres are just as important. We chose the Czech Tufo Thundero HD – one of the fastest gravel tyres on the market, with a reinforced casing that stands up brilliantly to cuts.
Reviews
In cycling, the most important people are those who ride the bikes. Read what media and our customers say about LOCA Bikes.
FAQ
01.How long does it take to get a bike?
All in-stock bikes are shipped within a week. Remember that most orders are custom-made, and delivery time is between 2–3 months.
02.How can I pay for my order?
You can pay:
- On-site – card or cash
- Online – bank transfer or through our website
- Leasing is also available!
We use trusted and secure payment providers, and you'll receive confirmation immediately after payment.
03.How long is the warranty?
- 5 years – frames and forks
- 2 years – other components
All bikes undergo thorough testing: frame and fork design, factory inspection, painting, assembly, and test rides. This ensures the highest quality and durability.
04.What does the shipping look like?
- Poland: 150 PLN, 1–2 business days
- EU: 280–400 PLN / 60–100 €, 3–5 business days
- Outside EU: please contact us to check shipping time and cost
For Poland, Germany, Austria, and the Czech Republic, bikes are delivered fully assembled – simply attach the pedals and rotate the handlebars.
For other countries, you will also need to insert the saddle and seat post, attach the front wheel, and secure the handlebars.
05.Can you help me adjust my bike fit?
Yes! With years of cycling experience, we can help choose the right frame size and components.
Already have bikefitting measurements? We'll adjust the components to replicate your position.
No measurements? We can suggest bikefitting locations and then build your bike according to the fitter's recommendations.
06.Do you provide servicing?
Absolutely! We service bikes purchased from us all year round.
Have a bike from another brand? Please call us in advance to check available appointments.
07.Can I see the bikes in person?
Yes! Visit our showroom in Wrocław.
Want to test a specific model or size? Please contact us in advance
08.Are your bikes safe?
The first words that come to mind are Absolutely! We design all models with a simple idea in mind: Would we want to ride them ourselves?
The bikes undergo rigorous durability tests and multi-stage quality control. The frames meet European ISO standards. Additionally, we test the models on our behalf in a leading German laboratory, EFBE, according to even more rigorous standards.
Each unit undergoes: frame quality control upon receipt, paint quality control after painting, and technical inspection after assembly. We work with regularly calibrated torque wrenches from one of the best brands on the market, Wera. We only use professional tools from renowned companies such as Park Tool, VAR, Unior, Wera, Shimano, SRAM, Cyclus, Enduro, DT Swiss, and Feedback Sports.
We want to be proud of every bike you receive and create products that you can ride with confidence for years to come.
