FRAMES

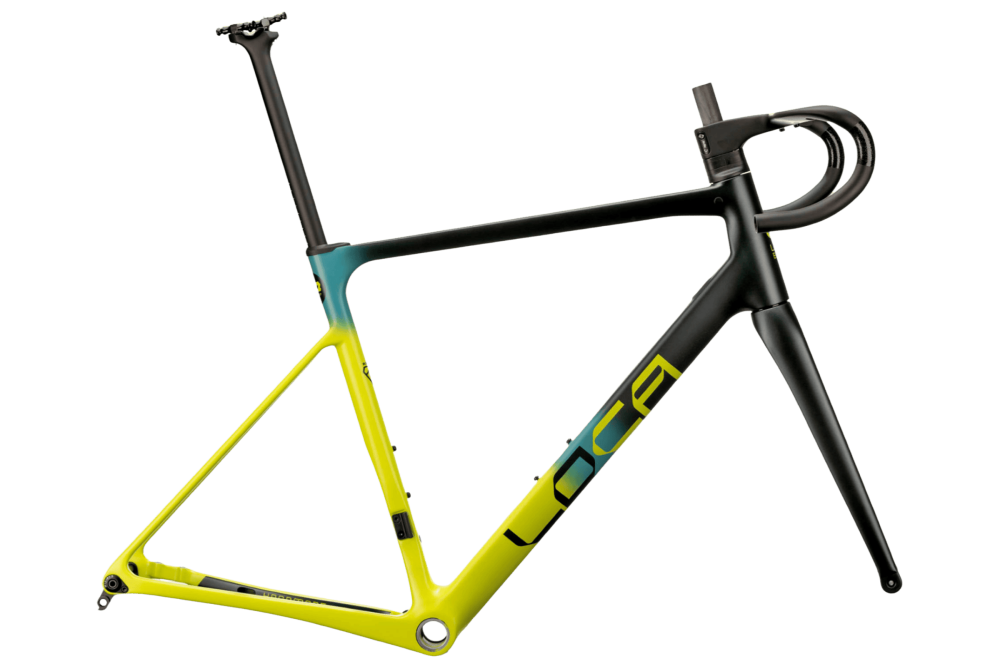

Alto CF
Speed and comfort on the road and in light terrain in an ultra-light carbon version
Carbon Full Toray
Frame and fork material
FSA ACR
Fully Integrated Cable Routing
From 950 g
Bike weight
700x35c
Maximum tyre width
product unavailable
Our paint jobs
Ruby Prism
Design: Tadek Ciechanowski | Dreamworkers
Paintwork: Dreamworkers
Design
This paint scheme was the debut design for our Road Plus model. The bold typography, which perfectly captures the spirit of the series, was designed by Tadek Ciechanowski
- a Wrocław-based photographer and graphic designer, with whom we have worked almost since the very beginning of LOCA BIKES. We wanted something daring and different – a playful combination of graphic forms and modern paint technologies. The result? Better than we imagined.
Execution
We used an advanced coating based on interference pigments that dynamically shift to light and the viewing angle. The overall effect is enhanced by smoky transitions and abstract patterns. It is a design with a soul – unpredictable, unconventional, and wrapped in a subtle sense of mystery.
Emerald Prism
Design: Tadek Ciechanowski | Dreamworkers
Paintwork: Dreamworkers
Design
The twin brother of the Ruby Prism project, at first glance this design may seem quite similar, but take a closer look and you'll notice unique details emerging from the smoky paint. The typography, perfectly capturing the concept of this series, was designed by Tadek Ciechanowski – a photographer and graphic designer from Wrocław, with whom we have collaborated almost since the very beginning of LOCA BIKES.
Execution
As with Ruby Prism, the centerpiece here is a prismatic chameleon-type paint – multi-layered pigments containing metal oxides that completely change their colour depending on the viewing angle and the light hitting the surface.
LOCA.CSTM
Bring your vision
to life
Do you have your own bike design idea?
We'll help you make it a reality!
Create a bike
with us!
LOCA.CSTM is a close collaboration with our team. Whether your idea for a new project is fully fleshed out or you're just starting your journey – you decide the final design and configuration!
LOCA.CSTM
Bring your vision to life
Do you have your own bike design idea?
We'll help you make it a reality!
Create a bike with us!
LOCA.CSTM is a close collaboration with our team. Whether your idea for a new project is fully fleshed out or you're just starting your journey – you decide the final design and configuration!
Group rides or brevets? The choice is yours!
Specification
Frameset
Frame
Full Toray carbon fibre. Frame weight from 950 g (depending on size)
Paintwork
Hand-painted using wet paint in Lower Silesia, Poland.
Sizes
XS (43 cm), S (46 cm), M (49 cm), L (52 cm), XL (55 cm)
Fork
Tapered full-carbon; from 440 g (150 mm steerer)
Axles
LOCA, 12x100 (120 mm, pitch 1.5 mm); 12x142 mm (173 mm, pitch 1.5 mm)
Cockpit
Handlebar
None | LOCA Carbon, integrated cockpit: 80x380 mm (XS, S); 90x400 mm (M); 100x420 mm (L); 110x440 mm (XL)
Stem
Integrated
Extras
Seatpost
LOCA Carbon, 27.2 mm, offset 20 mm
Max. load
120 kg
Feel the wind in your hair!
Geometry
The geometry of our Road Plus bikes allows for tyres up to 35 mm wide. Generous tyre clearance combined with an endurance-style stack/reach ratio gives you a comfortable riding position – perfect for leaving the beaten path.
It handles gravel trails and rough asphalt with ease. At the same time, the short rear triangle, compact wheelbase, and sharp angles deliver pure road bike performance. You'll catch up with the group on the flats and descend mountain switchbacks with your eyes closed!
| Size | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| A Seat tube c-t (mm) | 450 | 470 | 490 | 510 | 530 | 560 |
| B Effective TT (mm) | 525 | 545 | 560 | 577 | 595 | 615 |
| C Head tube (mm) | 120 | 135 | 150 | 170 | 190 | 210 |
| DChainstay (mm) | 435 | 435 | 435 | 435 | 435 | 435 |
| EHT angle(°) | 70 | 70.3 | 70.5 | 72 | 72.5 | 72.5 |
| FST angle (°) | 74.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| GWheelbase (mm) | 1029 | 1037 | 1050 | 1053 | 1067 | 1087 |
| HBB drop (mm) | 70 | 70 | 70 | 70 | 70 | 70 |
| I Reach (mm) | 375 | 380 | 390 | 400 | 412 | 426 |
| J Stack (mm) | 542 | 558 | 575 | 596 | 619 | 638 |
Carbon Road Plus
Alto CF
Road Plus was an idea we loved from the start. If your rides include asphalt with a touch of gravel or cobbles, the Road Plus is your best companion. At its heart is: a high-grade carbon frame made from Japanese Toray fibres and a full carbon fork.
This setup offers not only low weight but also exceptional durability. Each frame is tested under rigorous fatigue tests to ensure long-term performance on demanding terrain.
The ultimate road bike!
Road Plus Alto CF lets you fly through any paved route, while the tall head tube and added tyre clearance make venturing onto gravel easy and comfortable.
Carbon
Light, stiff and durable – that's the carbon we use. It provides outstanding vibration damping, sharp handling and long-distance comfort, even on rougher routes.
Latest Technologies
Our frames are made using EPS technology, which helps reduce air pockets and wrinkles between carbon layers. This increased precision enhances both frame strength and reduces weight.
From 950 g
Ultra-lightweight build means climbs feel easier, and carrying the bike is a breeze.
700x35c
Up to 700x35c tyres allow you to stay versatile – with grip and confidence even when the road turns to gravel.
Key features
Zero cables.
Zero compromise.
Thanks to FSA ACR technology and wireless drivetrains, all cables are fully hidden inside the cockpit and frame. The result? A clean, minimalist look, easy cleaning, and full compatibility with handlebar-mounted bags. No cable damage. No complex setups. No spacers.
Speed and comfort don't have to be opposites!
The LOCA Road Plus lets you fly on asphalt, while the tall head tube and tyre clearance give you freedom to explore beyond it.
Built for road and more
The components and technologies we use are carefully selected for their specific purpose, ensuring that our gravel bikes perform perfectly under the conditions they were designed for.
Details matter
Fully internal cable routing not only looks clean but also makes it easier to mount bikepacking bags. The frame is compatible with both mechanical and electronic drivetrains, such as SRAM AXS and Shimano Di2. High stiffness allows for faster riding, while the durable construction performs just as well off paved roads.
Breathtaking Finish
Our exceptional hand-painted finishes make every Road Plus a small piece of art. The frames are wet-painted using highly durable clearcoat, which creates incredible colour depth and ensures long-lasting protection.
